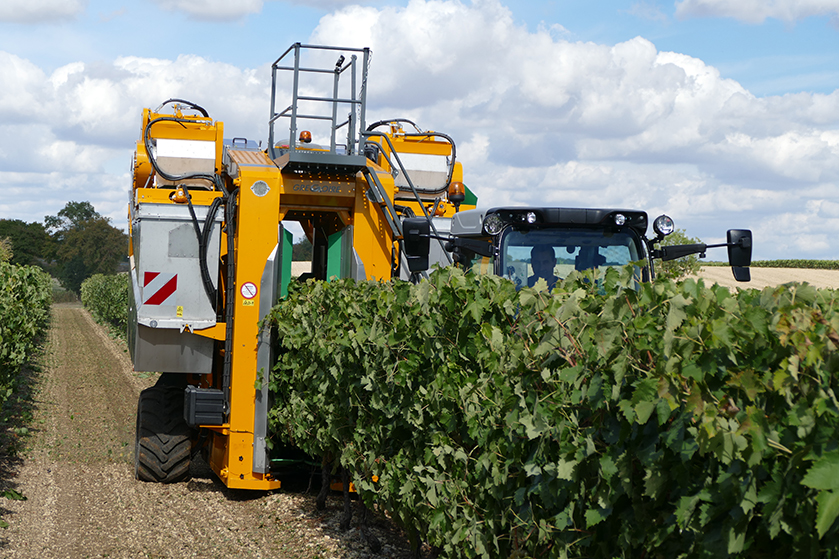

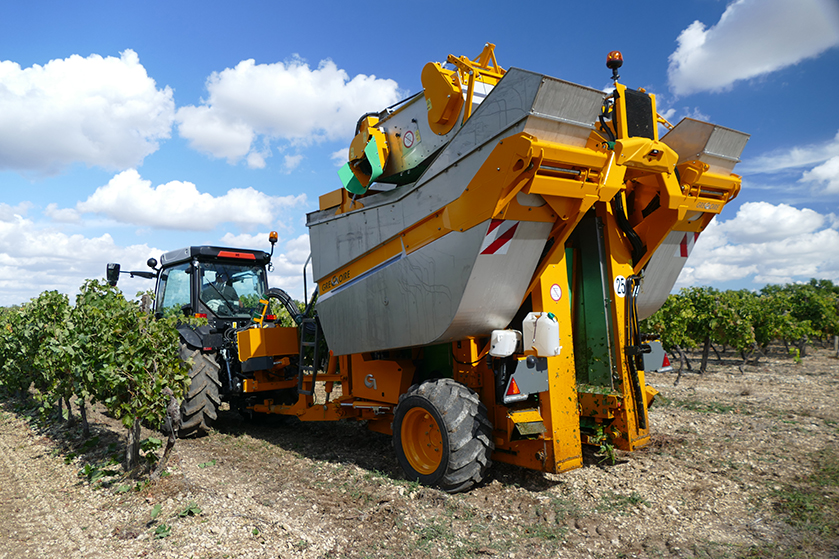

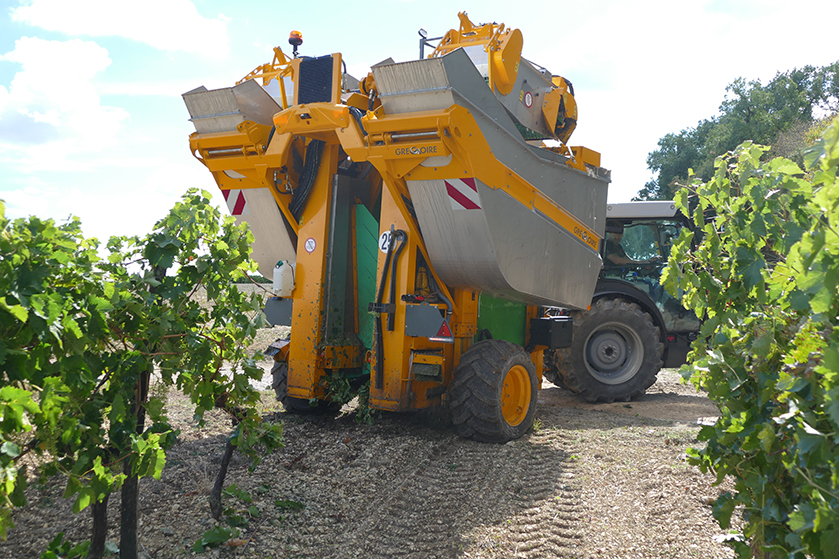

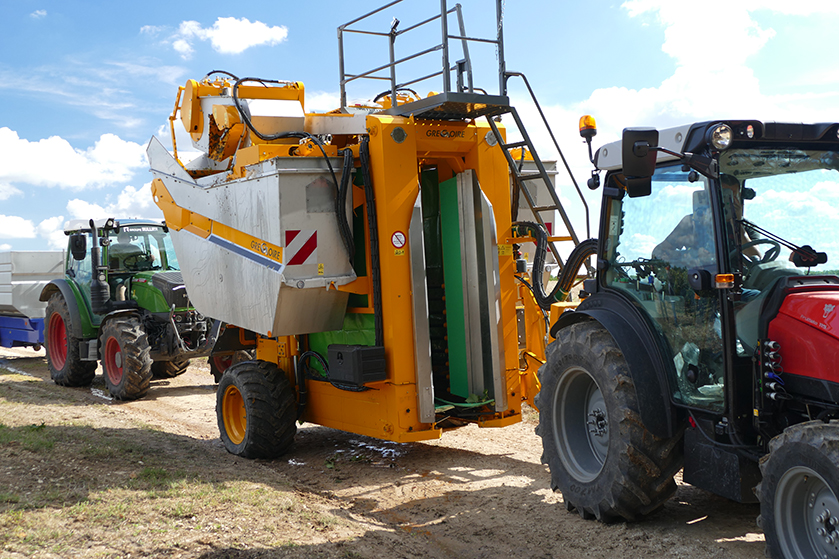

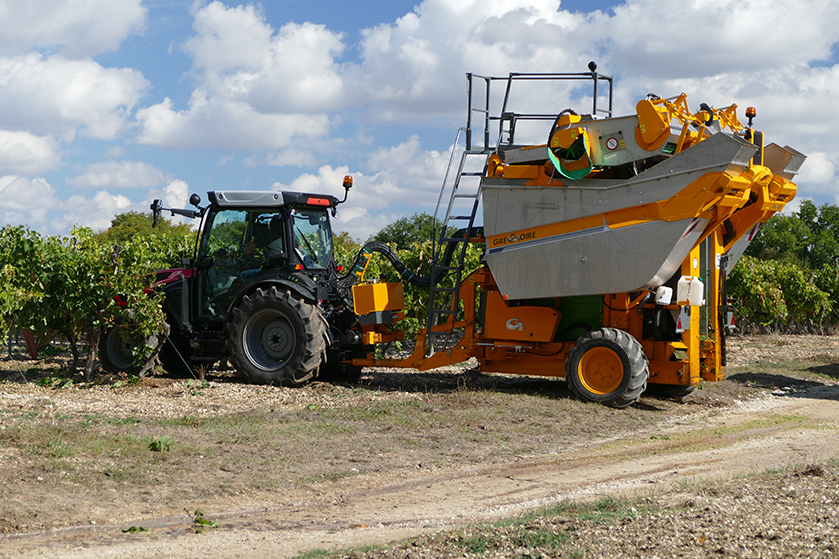

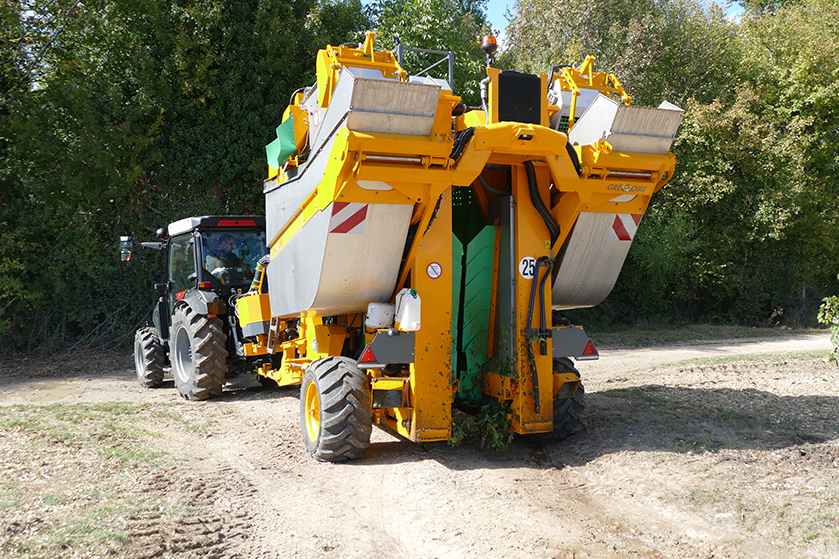

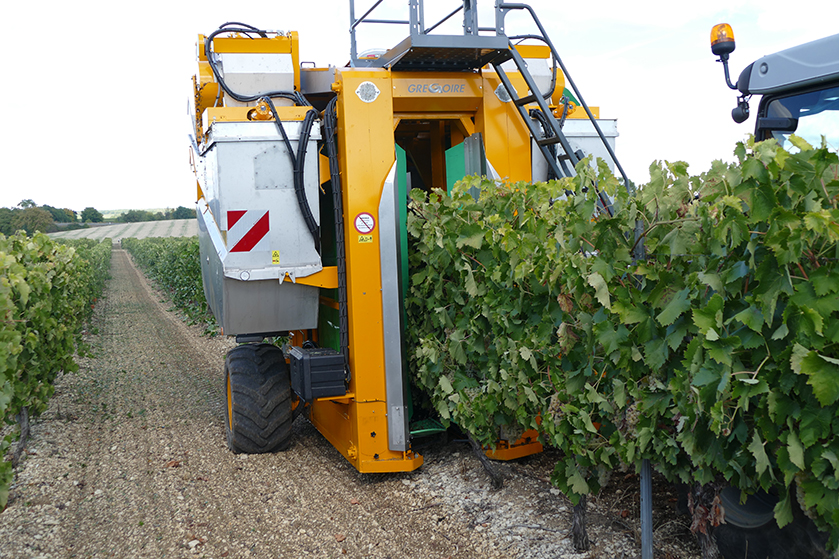

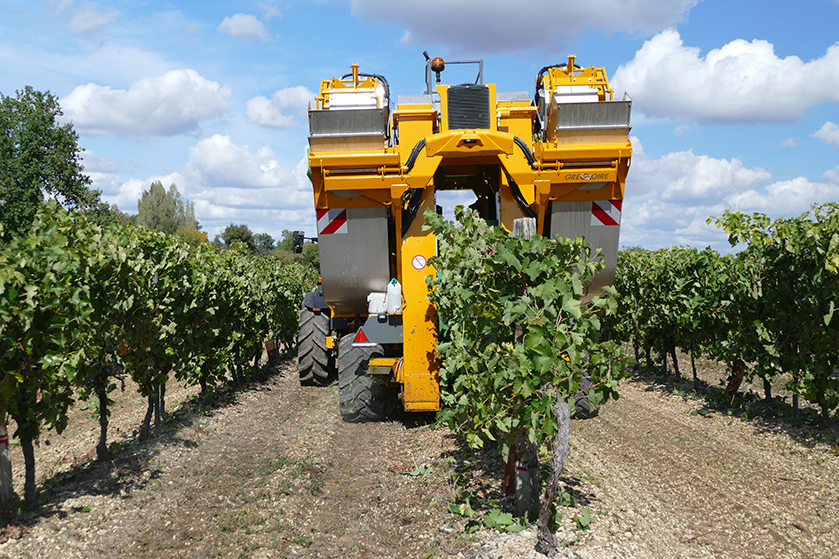

Power and traction adapted to demanding conditions
Equipped with wheel motors up to 1260 cm³ (optional), GREGOIRE GX3 delivers excellent traction, even in challenging terrain.
Its automatic transmission management continuously adjusts machine behaviour in real time to:
• optimise traction
• ensure safe operation on slopes
• maintain optimal stability both in and out of the row

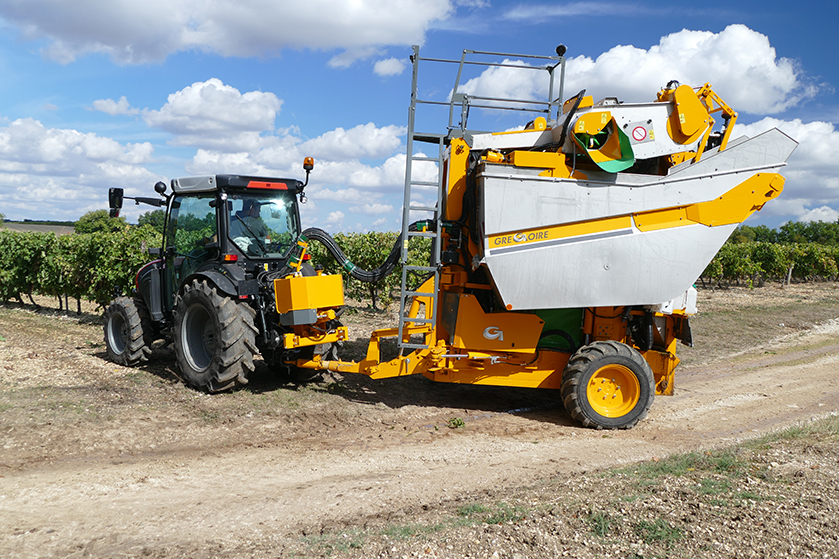

👉 A trailed grape harvester capable of working anywhere.
Comfort and intuitive control
GREGOIRE GX3 features a modern operator environment:
• 8.4’’ i-Monitor touchscreen
• multifunction joystick
• ISOBUS compatibility
• automation of key functions
Everything is designed to ensure simple, precise and efficient control, even during long working days.
Harvest quality at the heart of performance
GREGOIRE GX3 harvesting head integrates technologies developed from the brand’s historical expertise:
• ARC² shakers for full respect of the trellis
• complete berry detachment
• wide active zone for consistent harvesting
• suction system for clean harvesting
For even higher performance, the CLEANtech system (optional) provides precise destemming and cleaning without damaging the grapes.
👉 A grape harvester that enhances the grower’s work.
Easy daily maintenance
Designed for real working conditions, GREGOIRE GX3 simplifies maintenance operations:
• direct access to key components

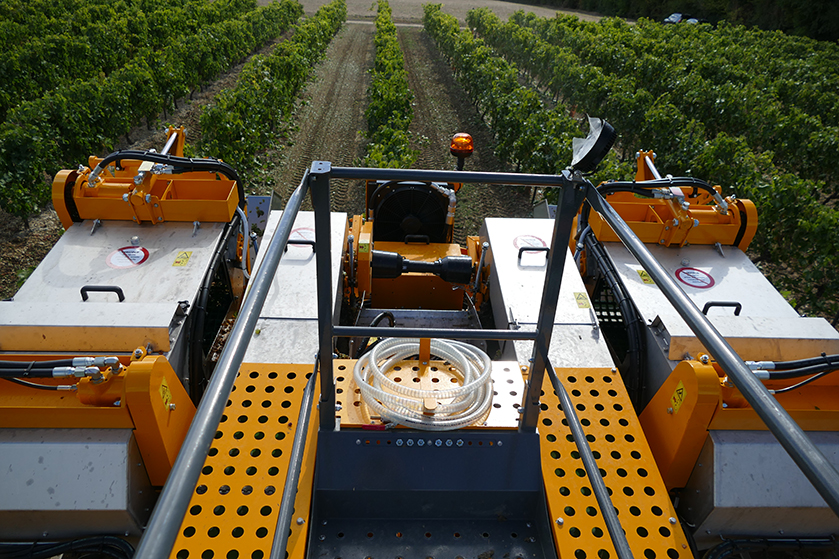

• secure upper platform
• standard remote control to operate functions from the ground
👉 Less maintenance time, more working time.
Maximum flexibility for all vineyards
GREGOIRE GX3 adapts to a wide range of conditions:
• slope correction up to 700 mm (25%)
• automatic row following
• steering drawbar for excellent manoeuvrability
• suitable for vineyards from 1.70 m row spacing

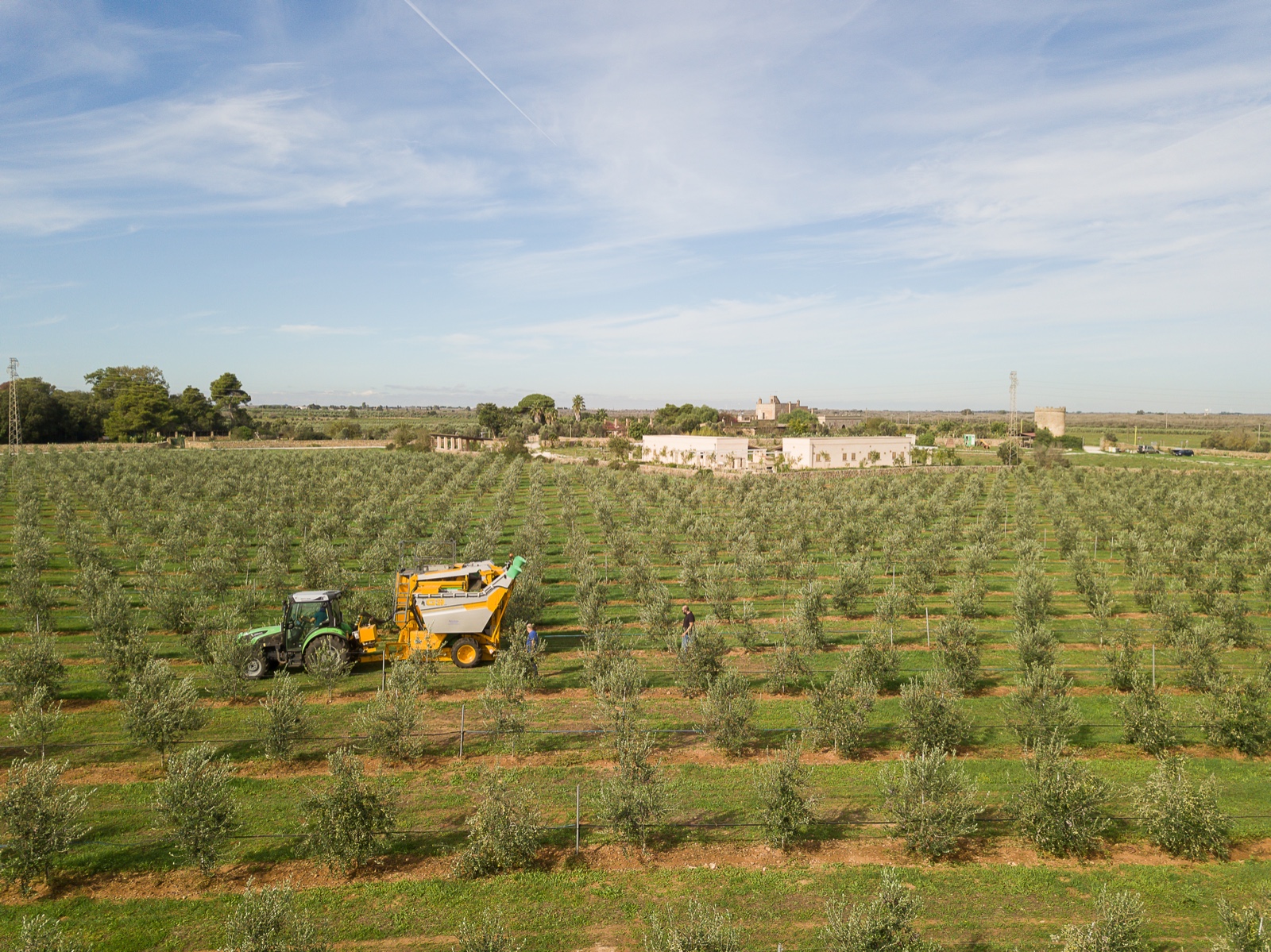

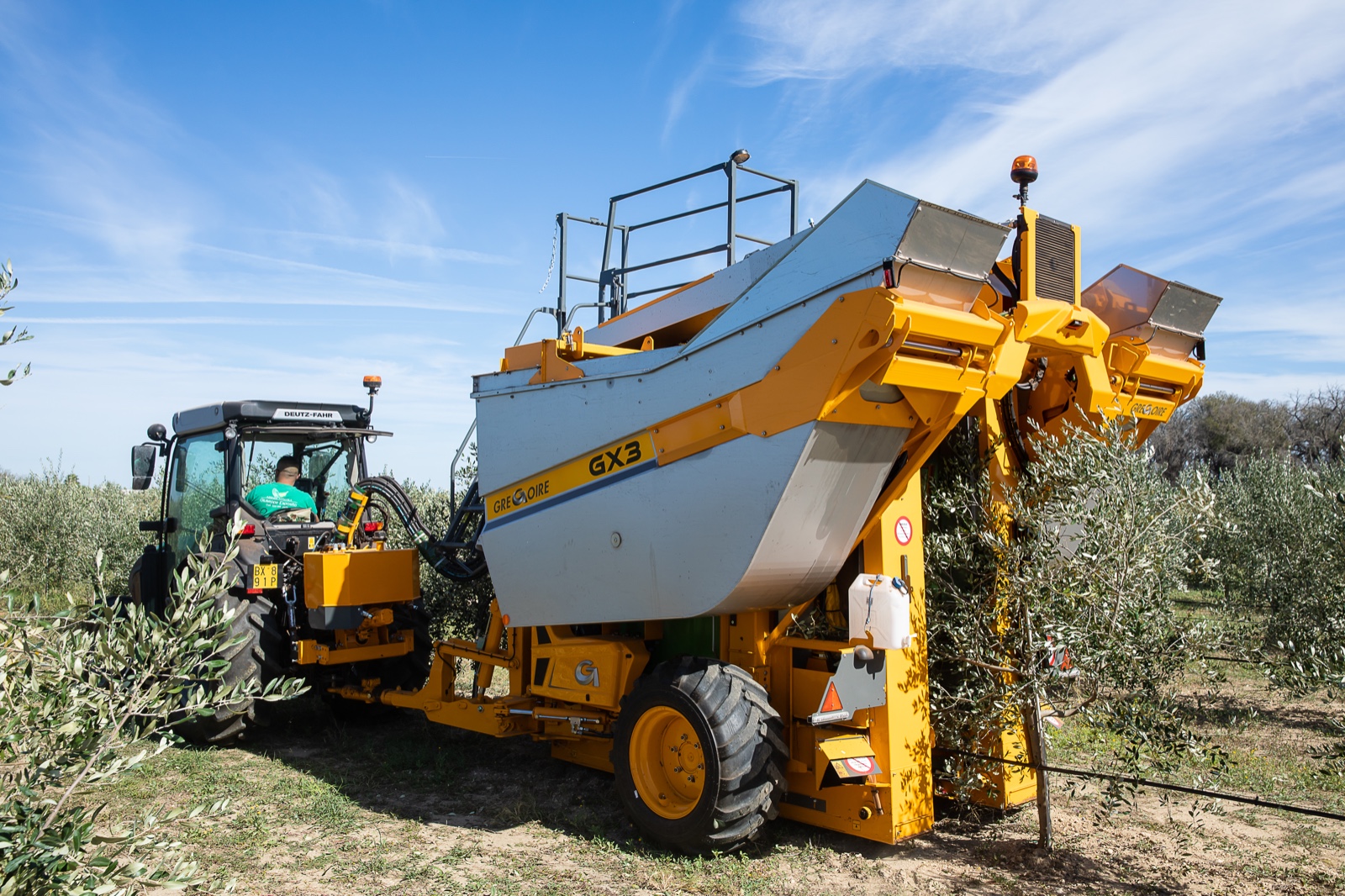

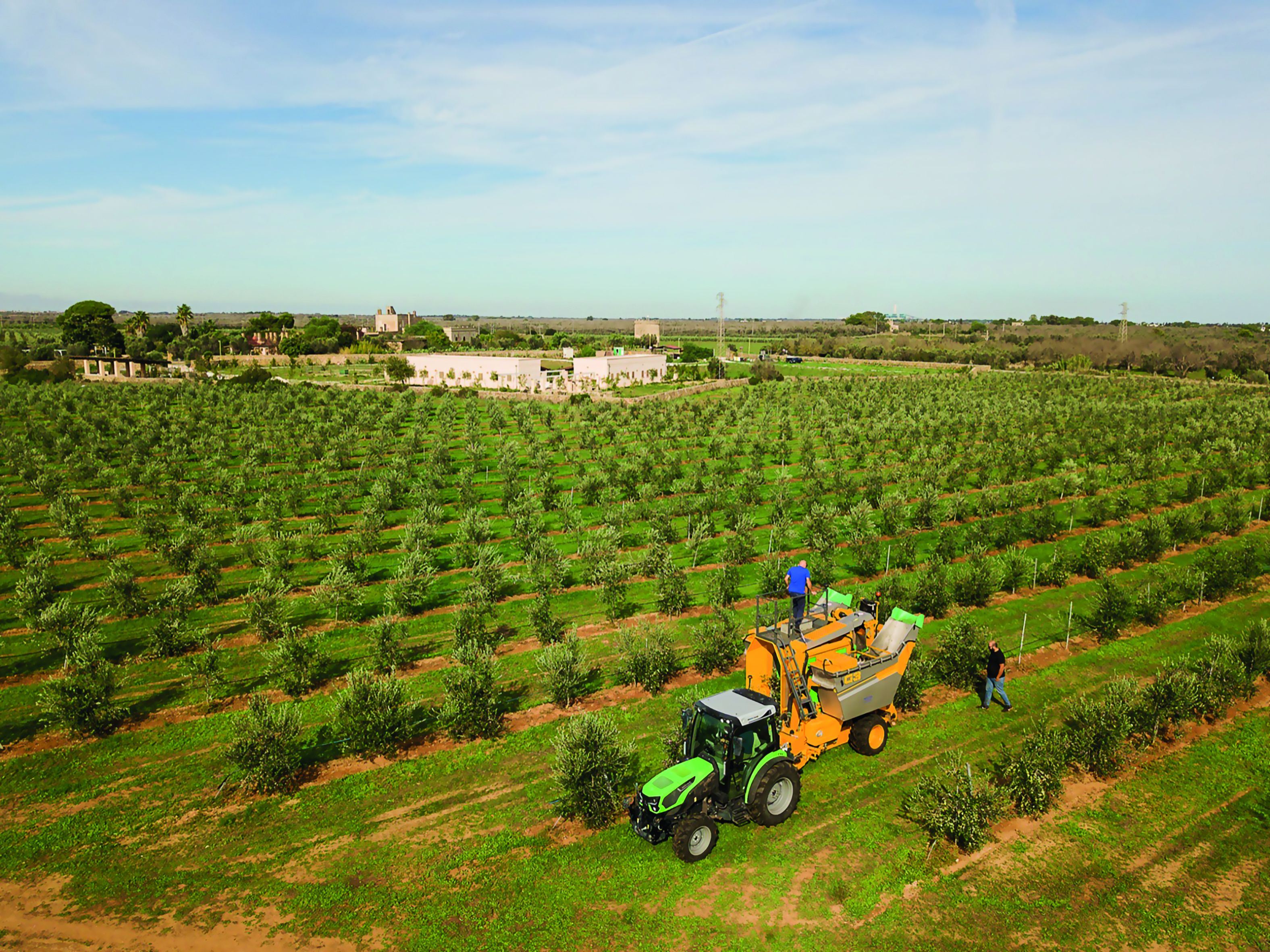

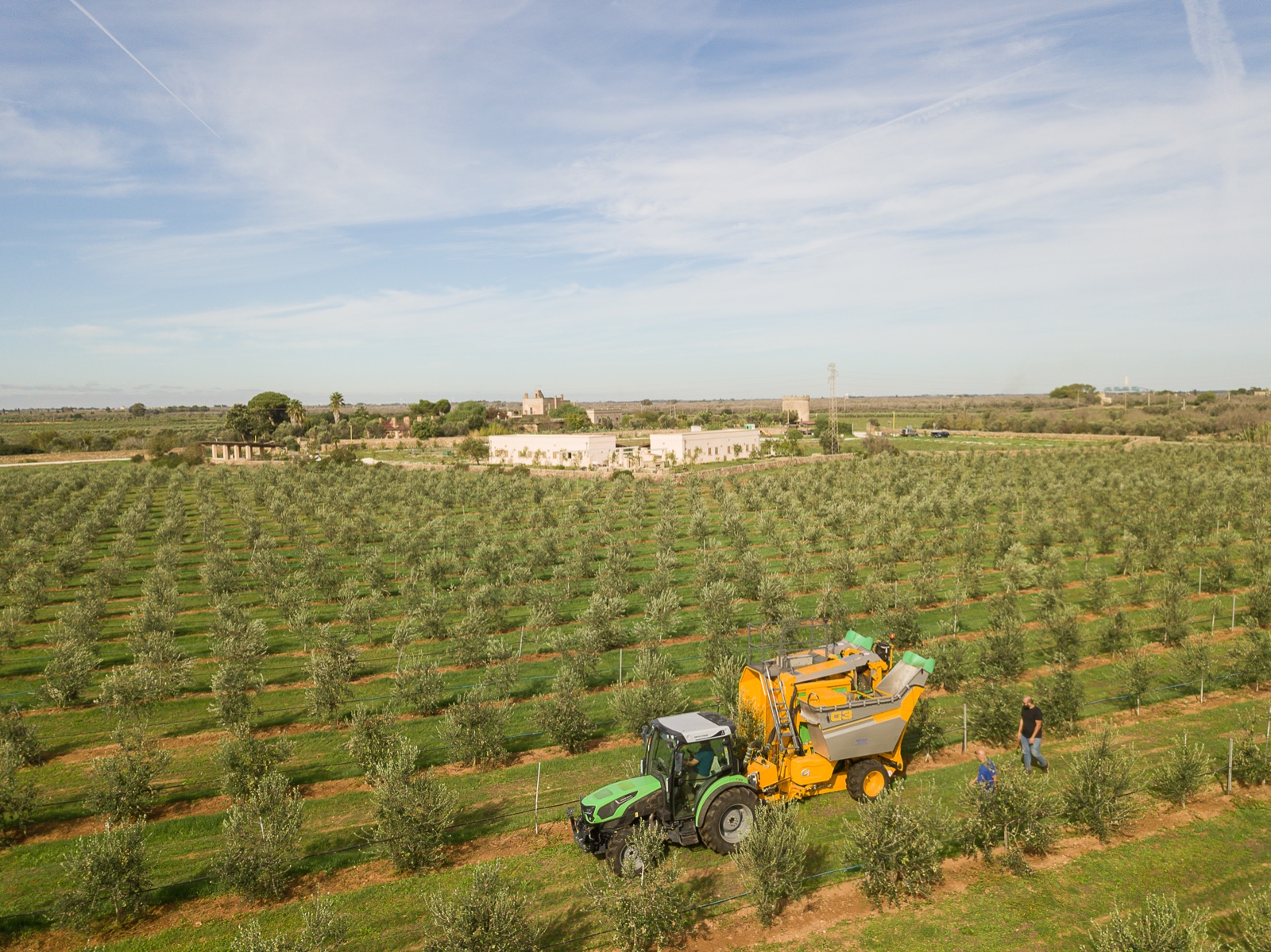

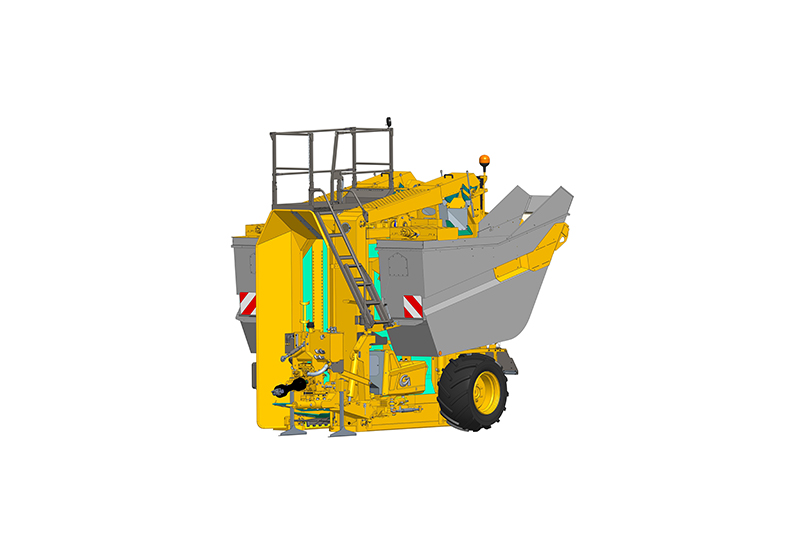

As an option, an olive harvesting kit extends machine usage and improves overall profitability.
ARC system
The ARC system harvesting principle ensures high quality harvesting and as yet unrivalled handling of the vine. Its exclusive characteristics give you access to an unlimited range of settings, which translates into quick and easy adaptation to any type of vineyard.
CLEANtech
Cleantech is an on-board sorting device combining slow rotation, flexible fingers and plastic mesh to promote optimum separation of the fruit. Identical direction of rotation for the rotor and chain ensures careful handling of the fruit for a perfect harvest.
Fiche technique

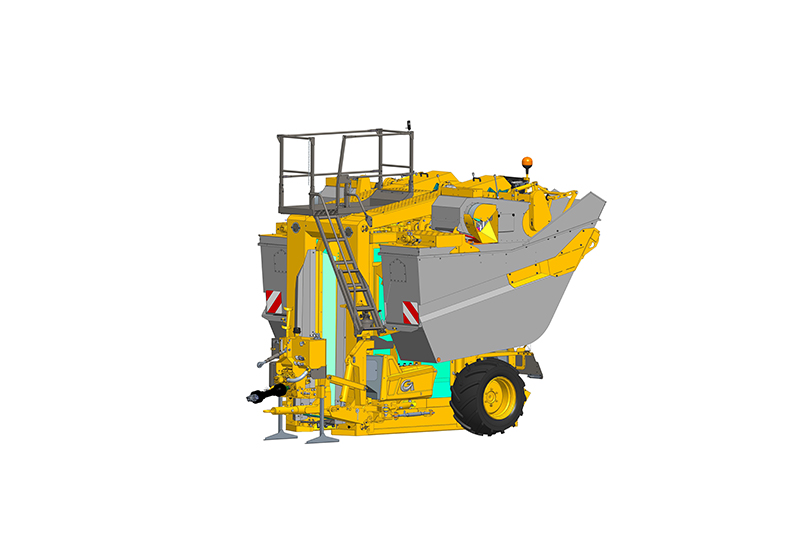

GX3
For plantations / vineyards |

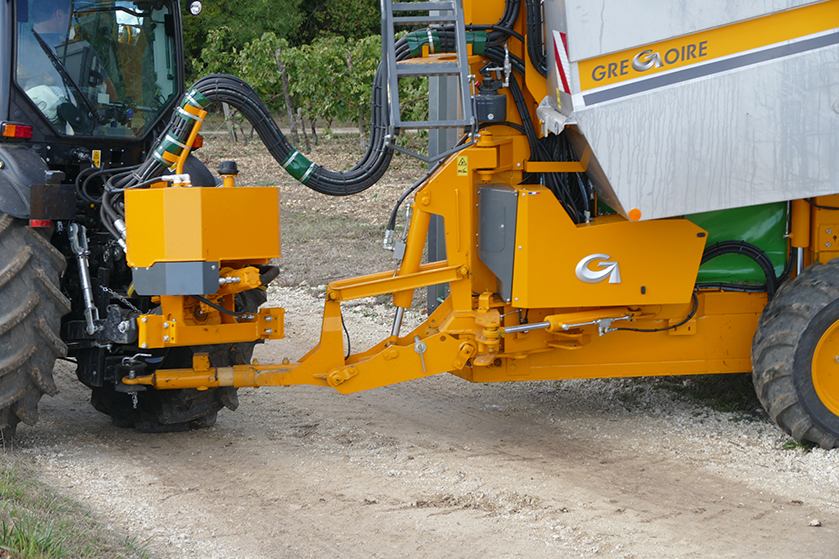

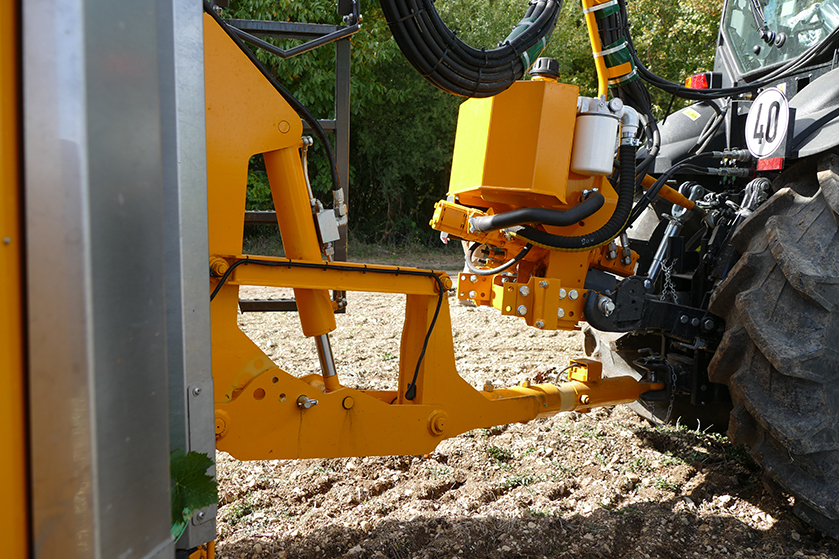

Drawbar mounted directly on the tractor hitch
Hydraulic power unit integrated into the 3-point linkage
Hydraulic unit capacity: 70 L
|
Engine or linkage |
Drawbar mounted directly on the tractor hitch
Hydraulic power unit integrated into the 3-point linkage
Hydraulic unit capacity: 70 L
|
Transmission |
700 mm / 25% slope correction
Integrated 70 L hydraulic unit
Suction and return filtration
2-wheel drive
Tyres 500/50 R20
|
Driving and control |
8.4’’ i-Monitor screen
Multifunction joystick: bin control, drawbar control
ISOBUS compatibility (screen and joystick)
Automatic transmission management
Automatic drawbar steering
Automatic height control (obstacle detection)
Automatic slope correction
|
Harvesting module |
20 adjustable shakers
Hydraulic pinch adjustment
2 × 18 scales
Sealing length: 2400 mm
Harvesting from less than 15 cm
Conveyor width: 320 mm
Distance between conveyors: 650 mm
Adjustable conveyor speed with reverse function
Acoustic protection on conveyors
Centralised greasing points
|
Cleaning |
2 lower fans
2 vertical extractors
CLEANtech optional
|
Bins |
2 × 2500 L

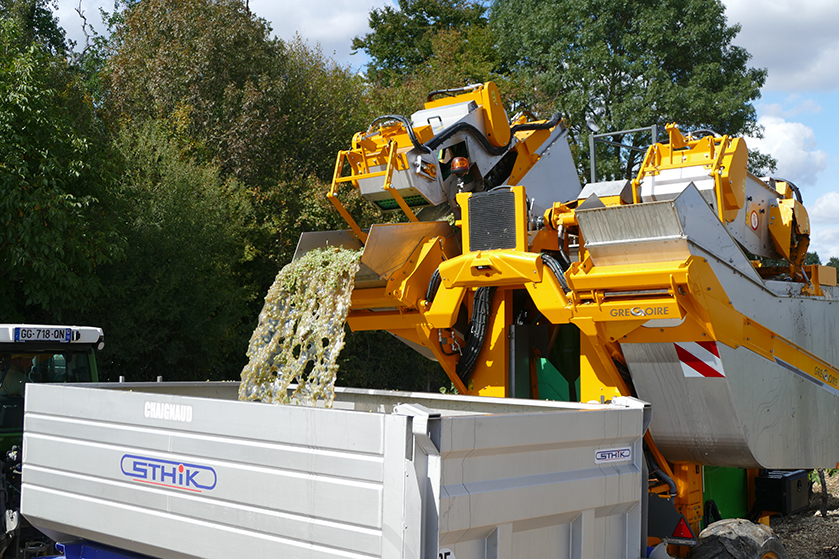

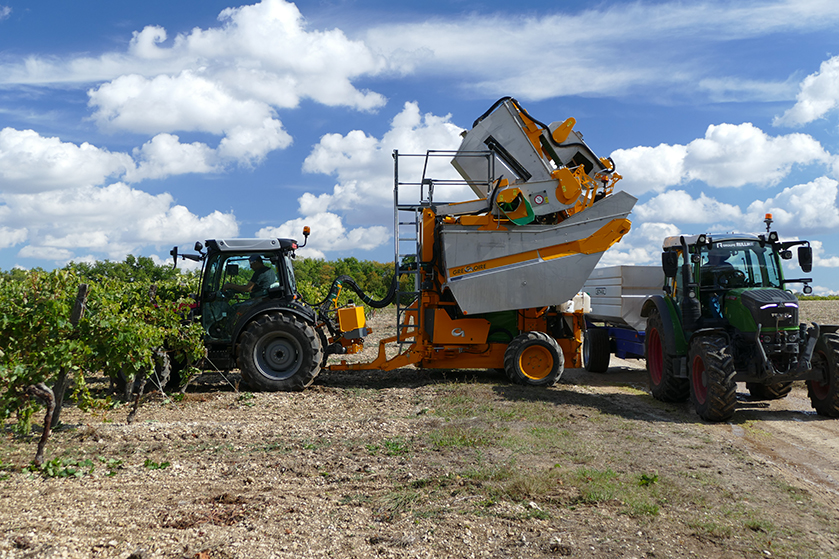

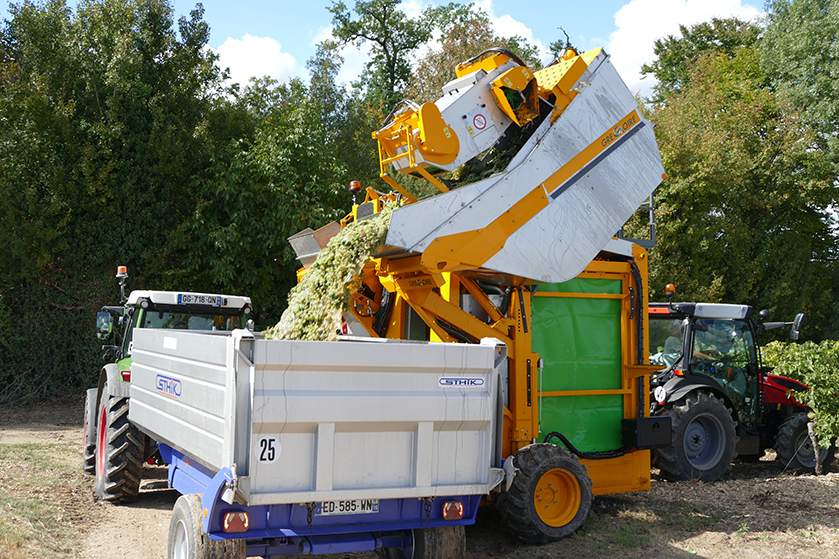

Rear discharge
Discharge height: 3.0 m
|
