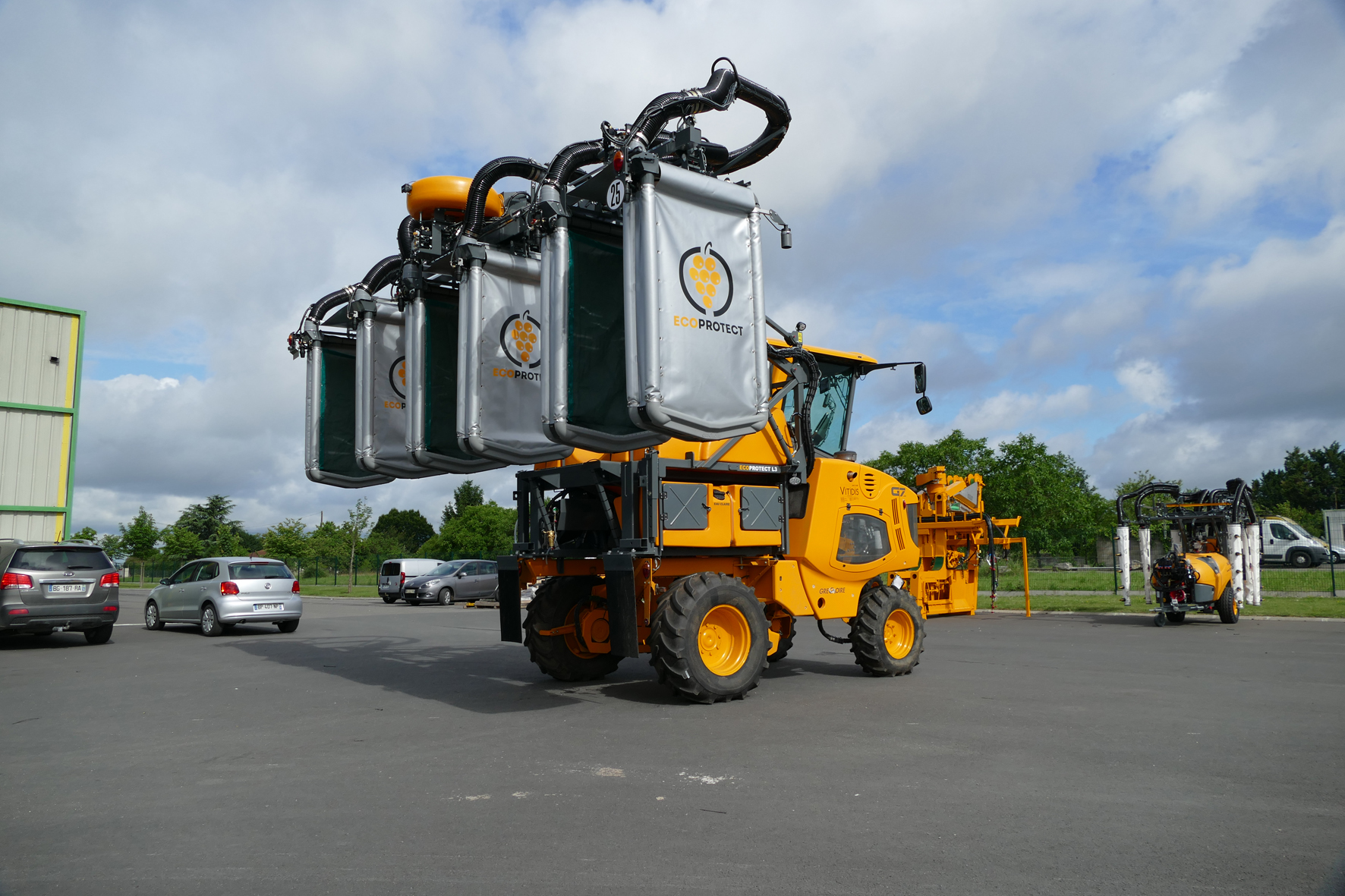

GREGOIRE ECOPROTECT L3 can treat three full rows. It represents a productive and eco-responsible alternative for winegrowers and contractors concerned with performance and efficiency. GREGOIRE ECOPROTECT L3 features a compact, ergonomic 2500L monoblock chassis-tank assembly. Effective tank mixing is ensured by a hydroinjector. Tank cleaning is simple, aided by an integrated rinsing gyro.
The product to be sprayed follows a circuit carefully designed and optimized by our developers. The product is deposited in an incorporator screen, then passed through a low-pressure filter. It is then circulated by a 4-piston diaphragm pump of sufficient capacity to ensure optimal filling of the circuit and efficient mixing. The water then passes through a high-pressure filter to the regulation and distribution manifold. Regulation and distribution commands are controlled by DPAE, directly in the cab, for automatic management of product supply.
The unique principle of flexible, unbreakable inflatable boxes, combined with face-by-face pneumatic spraying technology, ensures optimum application and containment. The product, perfectly micronized, is blocked by an air curtain. Excess spray liquid is recovered by a simple, effective spray mist collection and filtration system. Designed for dose reduction, it increases spray concentration by 50%.
TOOLintegration
With TOOLintegration, GREGOIRE versatile carriers are pre-equipped as standard to be versatile, allowing a GREGOIRE spraying unit or tool to be easily installed. ISOBUS technology allows this equipment to be controlled directly using the existing controls in the cab.
FLEXYSPRAY
FLEXYSPRAY is a boom sprayer exclusive to GREGOIRE. Flexible, it is inflated by the air expelled by the turbine, which makes it rigid and vertical inside the row. It moves when it encounters an impact, returning to its original shape, thereby limiting breakage. Its low weight reduces the strain on the boom.
DYNADIFF 3D
Rotative diffusers, 360° product spectrum orientation. Increasing the air speed, DYNAdiff 3D gives better distribution of the product and perfect droplet formation, providing significant agitation of the plant canopy to ensure optimum penetration of the product, with limited drift.
EASYselect
EASYselect is a centralisation device for the valves supplying your sprayer. It controls the external mixer, the rinsing nozzle, the stainless container rinsing screen, the cleaning lance and hydro-injectors to simplify cleaning of your equipment.
LABEL_TECHNOLOGIES_HOMOLOGATIONZNT
TEXT_TECHNOLOGIES_HOMOLOGATIONZNT
Fiche technique
ECOPROTECT L3 ZNT
Frame and Tank |
Road signs
Welded chassis
Removal system
One-piece cell
2500L polyethylene tank
Manhole diameter 400mm
Tank level indicator on display
Hand-washing tank
Integrated clear water tank
Integrated storage compartments
Under-tank drain valve
Integrated incorporator
Available on GM7.4, GL7.4, GL8.4, GL8.6, GX8.4, GX8.6
|
Pump, regulation and controls |
High-pressure piston diaphragm pump 95L/min at 50bar
Triple filtration: filling sieve, 365µm suction filter and bronze high-pressure filter
Agitation by hydro-injector
Recovery: 3 piston-diaphragm pumps 23l/min: six recovery filters
DPAE system
All functions controlled from operator station
3 motorized, electrically-operated, return-compensated product valves
High-pressure hoses with brass fittings
|
Spraying device |
Turbine diameter 520mm
Hydraulic drive with centrifugal clutch
Speed display on VIEWmaster screen
Independent boom overhang
FLEXIspray flexible panels, spray collection net
Automatic ground tracking (optional)
Flexible PU sheaths diam. 100mm
|
