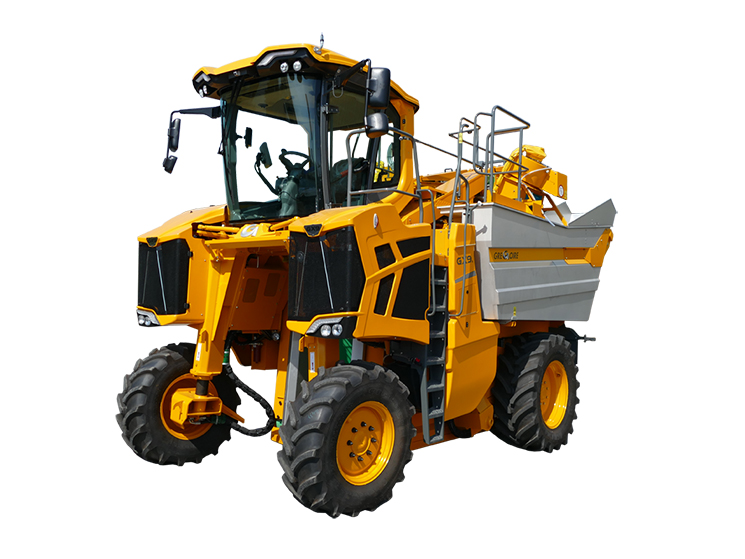

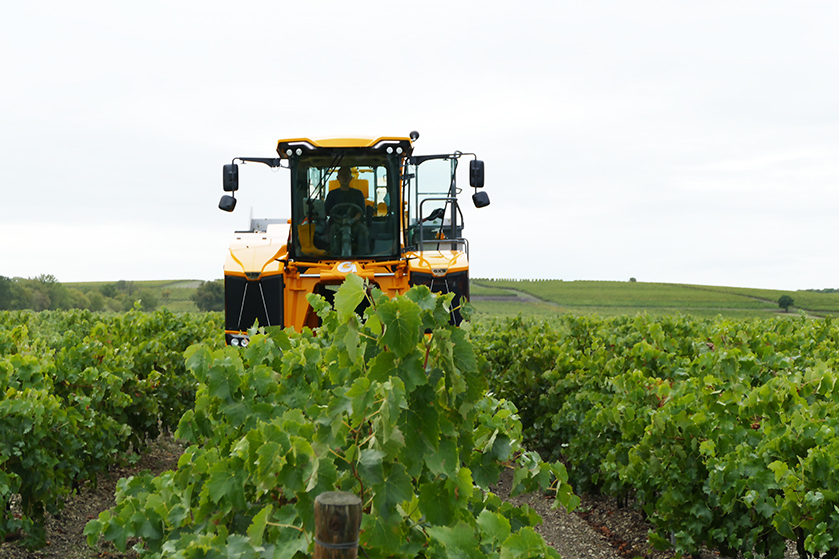

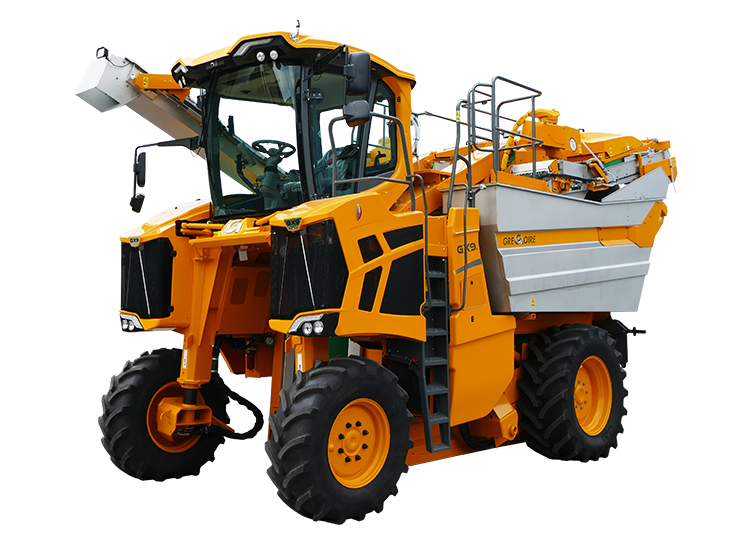

GREGOIRE GX9.6 is the grape harvester for high-yield vineyards. Its 190 hp, 6-cylinder Deutz engine enables it to cope with the highest yields. POCLAIN's permanent hydrostatic 4-wheel-drive transmission offers increased maximum clearance (up to 28%), guaranteeing a high-performance, efficient transmission.
Access to the cabin is via the tilting electric ladder. Activating it turns on a welcome light and starts GREGOIRE GX9.6 screen. All you have to do is get behind the wheel and start working. Ergonomic, compact controls with I-Monitor color touchscreen and fully customizable joystick give you total control of the machine. No fewer than 10 LED lights equip GREGOIRE GX9.6, providing over 18,000 Lumens of illumination.
GREGOIRE GX9.6 is equipped with an oversized harvesting module, ready to harvest heavily trellised vines in the most difficult conditions. The ARC² shakers, with their large active zone, enable efficient harvesting without damaging the foliage. The harvest is then transferred by wide conveyors to the skips. Cleaning is carried out by vacuum cleaners in the lower positions, supplemented by two upper vacuum cleaners.
An open harvesting head gives full access to all GREGOIRE GX9 harvesting head components for easy cleaning and maintenance. What's more, by grouping the various grease nipples on the harvesting head together, you can carry out effective maintenance in record time. Access to the upper part of the harvester head is safe thanks to a long, wide platform that allows access along the entire length of the machine.

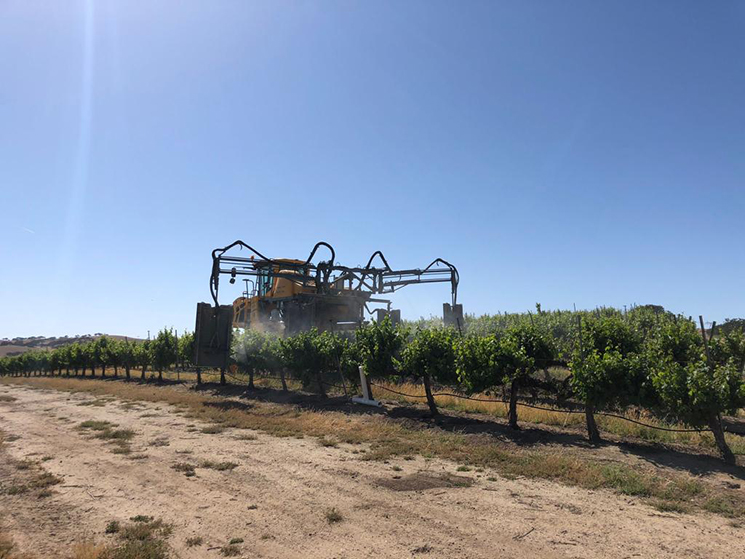

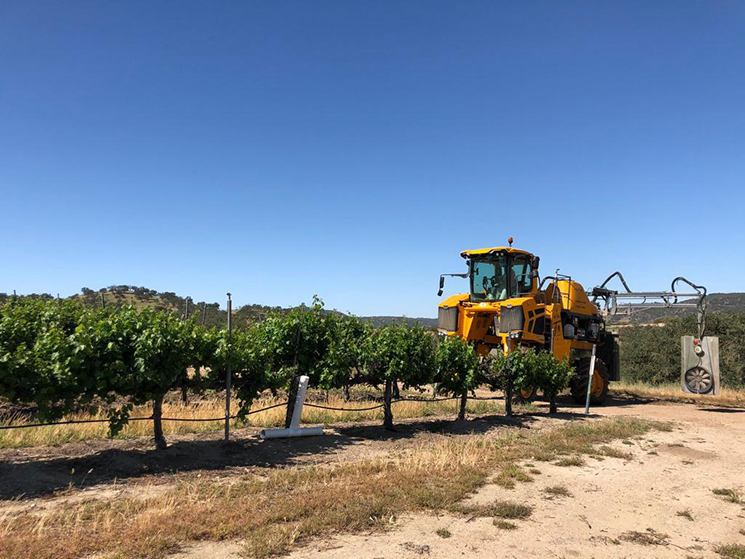

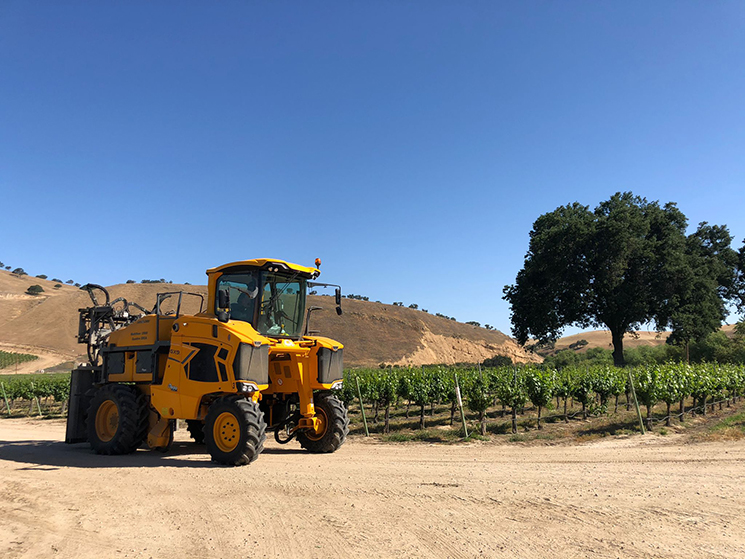

The versatile GREGOIRE GX9.6 forwarder can be fitted with front-mounted tools (via the GREGOIRE elevator tool carrier), as well as a spray cell on the rear platform. This allows GREGOIRE GX9.6 to be used continuously throughout the vine's development. GREGOIRE GX9.6 is equipped with ISOBUS technology, so implements are directly recognized and controlled via the joystick and i-Monitor. This compact, maneuverable forwarder can be used in all types of vineyard and on all types of terrain, from 2 m planting upwards.
AUTOdrive
AUTOdrive automatically adapts the engine speed to the ground speed when driving. This integrated management of the engine speed gives the transmission unrivalled flexibility and significantly reduces both consumption and the noise level. The joystick can also be used as a forward drive control.
AUTOspeed
AUTOspeed is used to perfectly regulate the working speed, regardless of the terrain. It is simple to activate via an easily accessible button on the joystick, allowing you to return quickly to the programmed speed.
ARC system
The ARC system harvesting principle ensures high quality harvesting and as yet unrivalled handling of the vine. Its exclusive characteristics give you access to an unlimited range of settings, which translates into quick and easy adaptation to any type of vineyard.
ECOdrive
The ECOdrive system, easy to activate from the joystick during manoeuvres, allows a drastic reduction in consumption. Its end of row sequencing, which can be fully configured, reduces the engine speed and helps increase the service life of your machine by conserving use of its components.
TEP
TEP, the train of pneumatic sealing scales (GREGOIRE patented), perfectly adapts the recall force of the sealing scales to the different types of vine. By adjusting the air pressure in a membrane located underneath the scales, vines can be handled as delicately as possible whilst limiting losses on the ground.
EASYclean
On board sorting system allowing perfect harvest quality. The « sorting head's » oscillating motion separates the grapes from vegetal materials. The grapes are stocked in the bins and the vegetal materials are expelled via the sorting table.Ample access available for maintenance.
Class 4 Cab
New generation cabin. External dusts, aerosol, and steam filtration. Built for optimum user safety and comfort. Technical data: active carbon filter, 30m³/h new air flow, 20 Pa pressurization, pressure control indicator in cabin.
Fiche technique
GX9.6
For plantations / vineyards |
Planting width from 2.00m
|
Engine or linkage |
DEUTZ engine (Stage V)
6-cylinder, 6100cm3
Power 190hp (140kW) at 2100rpm
Torque 825nm at 1450rpm
Automatic load-dependent speed control
260L fuel tank
20L Ad Blue® fuel tank
|
Transmission |
Joystick-controlled forward motion (pulse, linear and approach mode)
Permanent 4-wheel drive
TwinLock traction control
Automatic front/rear torque distribution
AUTOspeed cruise control
AUTOdrive engine speed optimization in road and work modes
30km/h road speed with eco revs
Automatic parking brake
Hydraulic tank capacity 110L
Suction and return filtration
Tilt correction 600mm/28
AUTOlevel
Turning radius 4.59m
Front tires 420/70R24
Rear tires 540/65R30
|
Driving and control |
Central cab
Cabin interior volume 2.2m3
Cabin glass area 5m2
Automatic air conditioning
Automatic air seat
ROPS structure protection level
Bluetooth radio with hands-free kit
Dual USB charger under armrest
2-point tilt and height-adjustable steering column
Customizable 12" i-Monitor color touchscreen terminal
Ergonomic, customizable, backlit multifunction joystick
Settings memory
Work memory (plots, hectares, hours, etc.)
2 color cameras
EASY360° (optional)
Side access via electrically tilting ladder (25°)

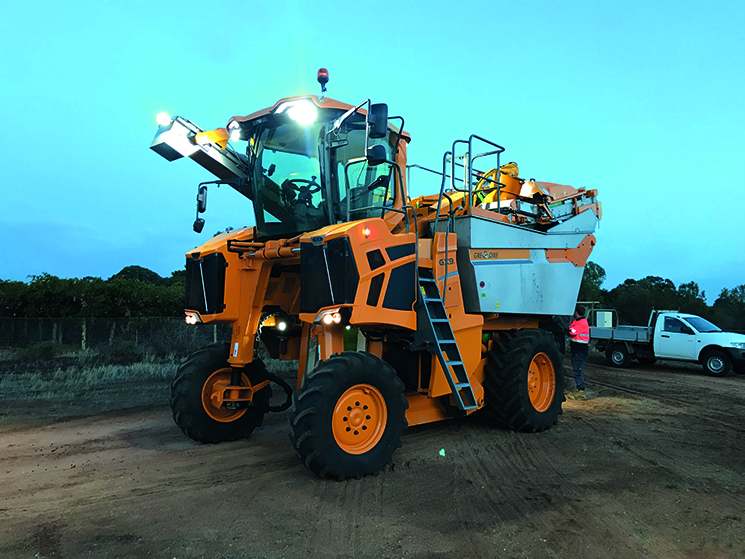

10 LED headlights for a total output of 18,160 lumens
|
Harvesting module |
Independent double pendularity (shaking + conveying) auto-locking in road mode
Harvesting head suspended by 8 silentblocs
20 ARC2 shakers with FASTfit quick-fit system
2x22 scales
Reinforced scale train
3300mm sealing length
Minimum crop height - 15cm
Conveyor width 320mm
Distance between conveyors 750mm
Adjustable conveyor speed with inversion
Low speed alarms for harvesting units
Various configurations: 2 x 22HL buckets, grab arm, arm only
Optional EASYclean sorter
2 lower vacuum cleaners as standard
2 upper vacuum cleaners as standard
Centralized lubrication
Wide upper walkway
Remote control console on upper walkway
Integrated wash column with water point on upper walkway
|
Cleaning |
2 bottom vacuums
2 upright extractors
2 upper vacuum cleaners
EASYclean oscillating finger sorting system (optional)
|
Bins |
2,200L stainless steel skips
Rear discharge
Dump height 3000mm

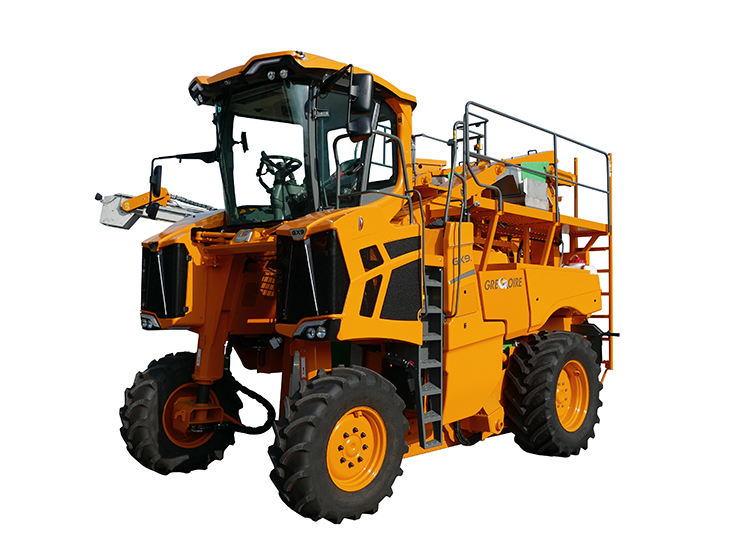

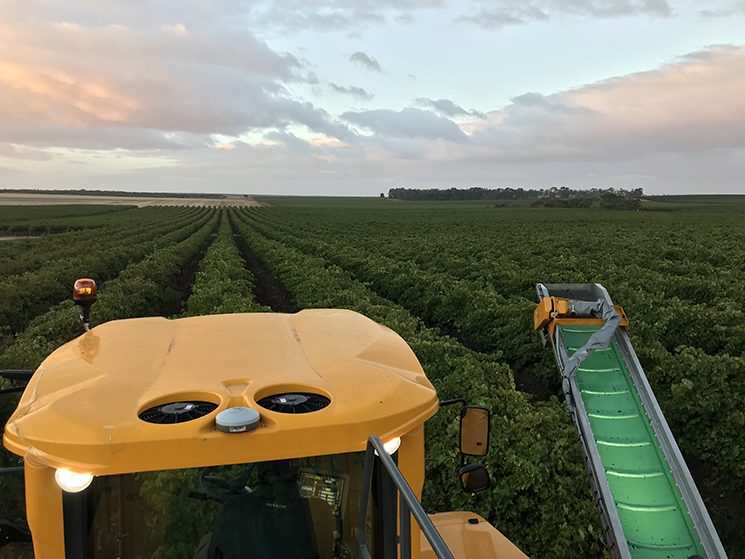

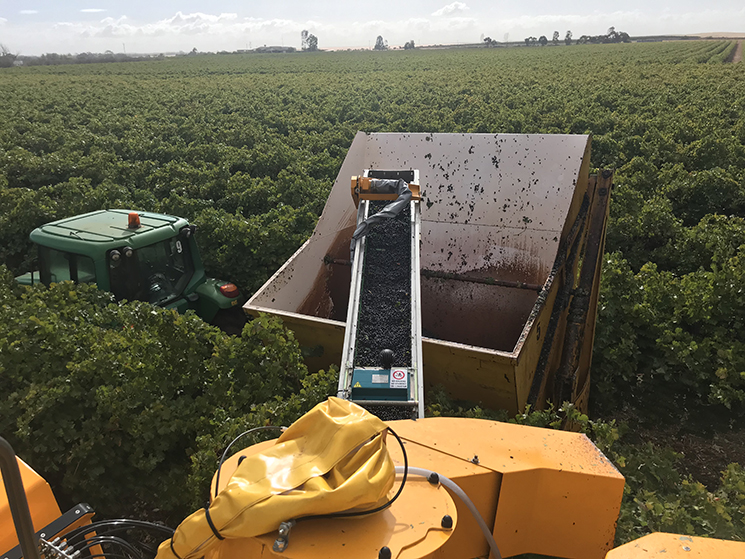

Optional discharge arm
|
Multipurpose |
TOOLintegration
Removable harvesting assembly
Front-mounted tool carrier (optional)
ISOBUS technology
|
